DVT Station
Project type
Workstation Production
Date
September 2022
Location
San Diego
Designed and built a compact soldering/circuit analysis station for my home lab.

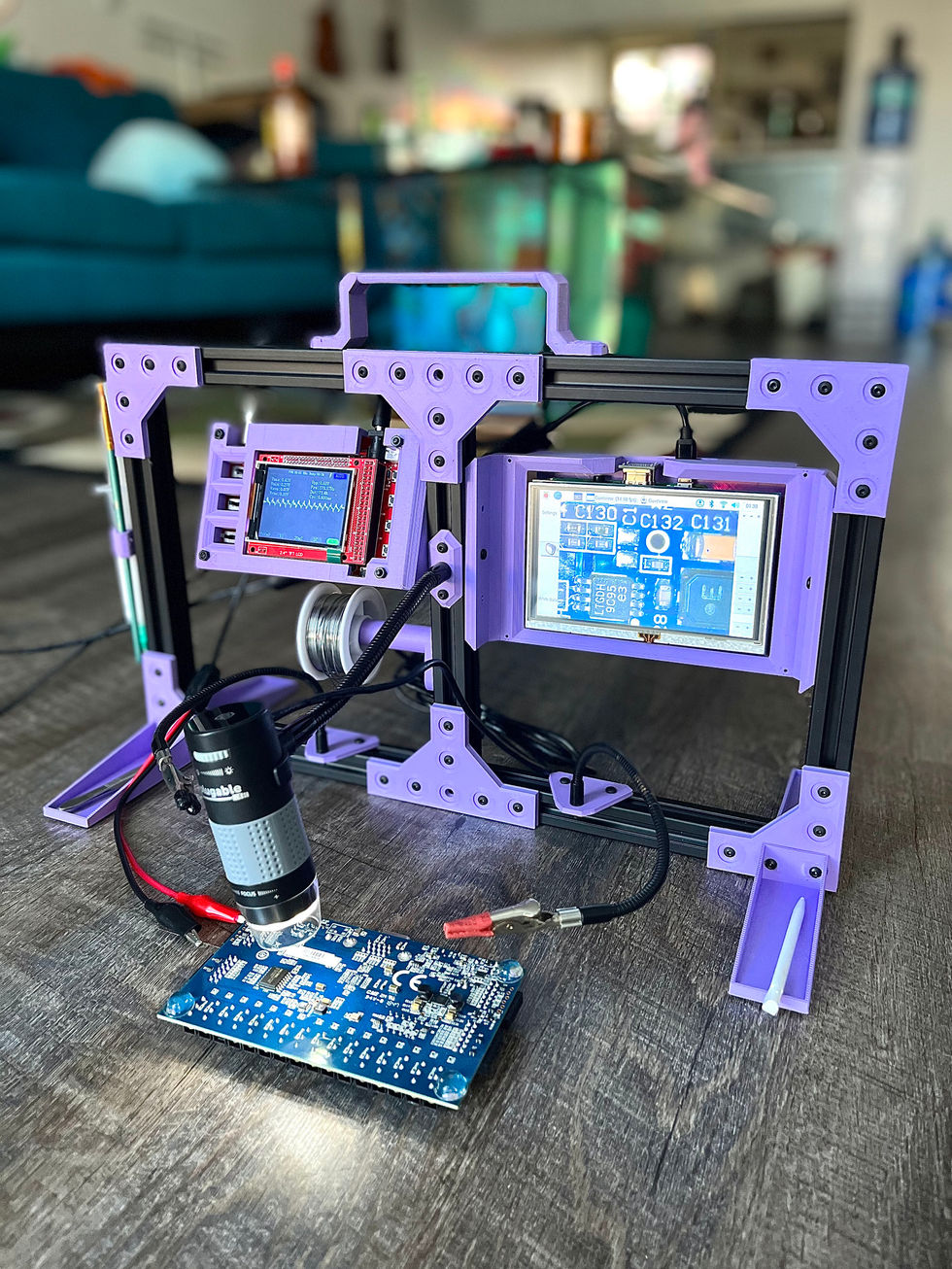

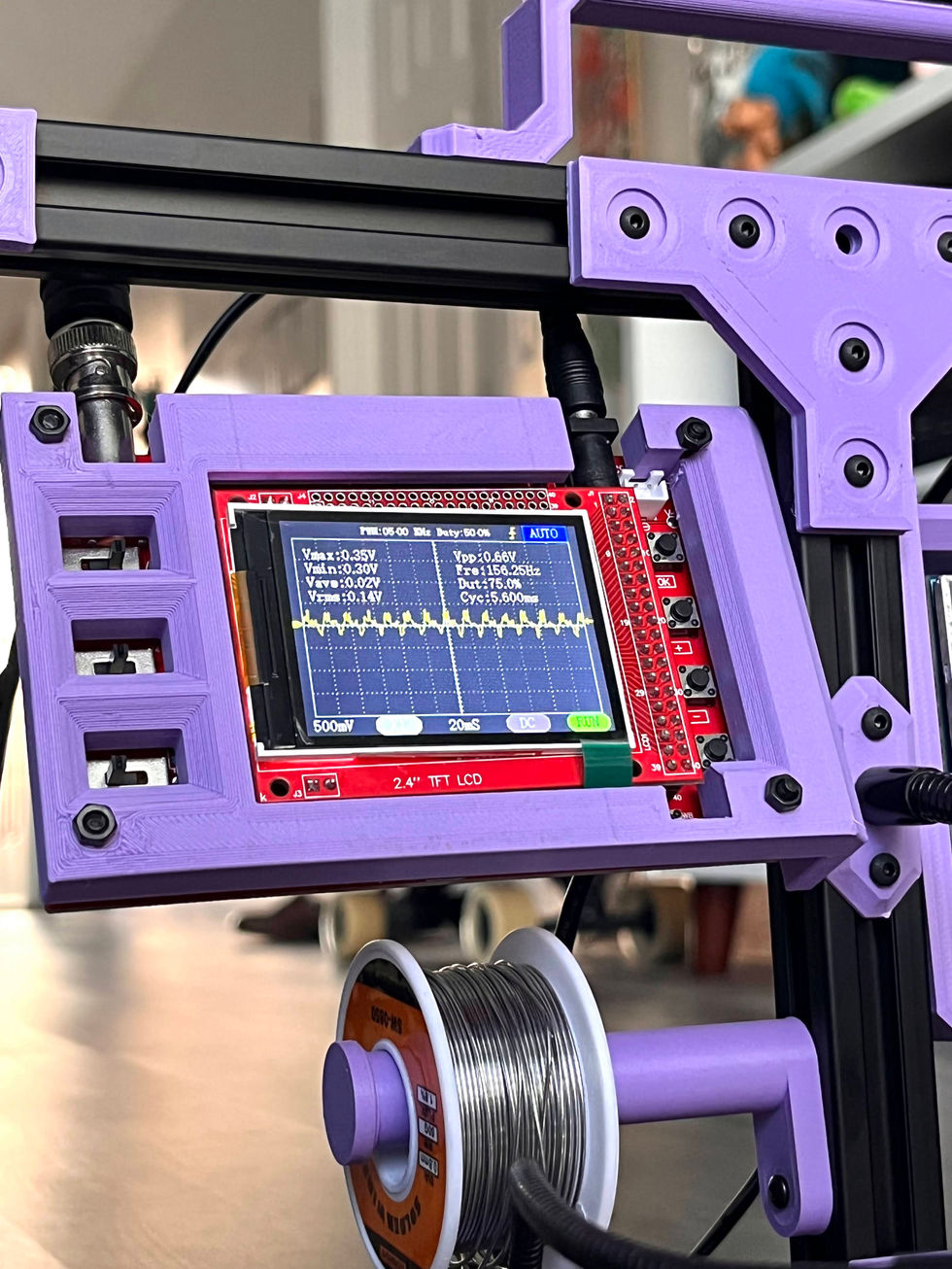

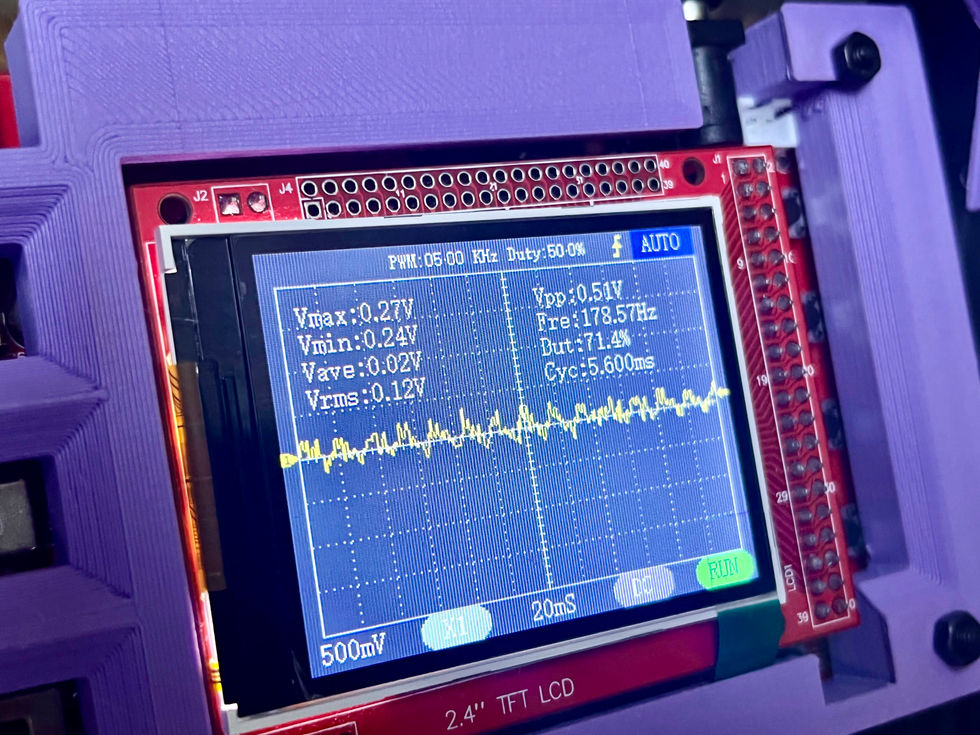

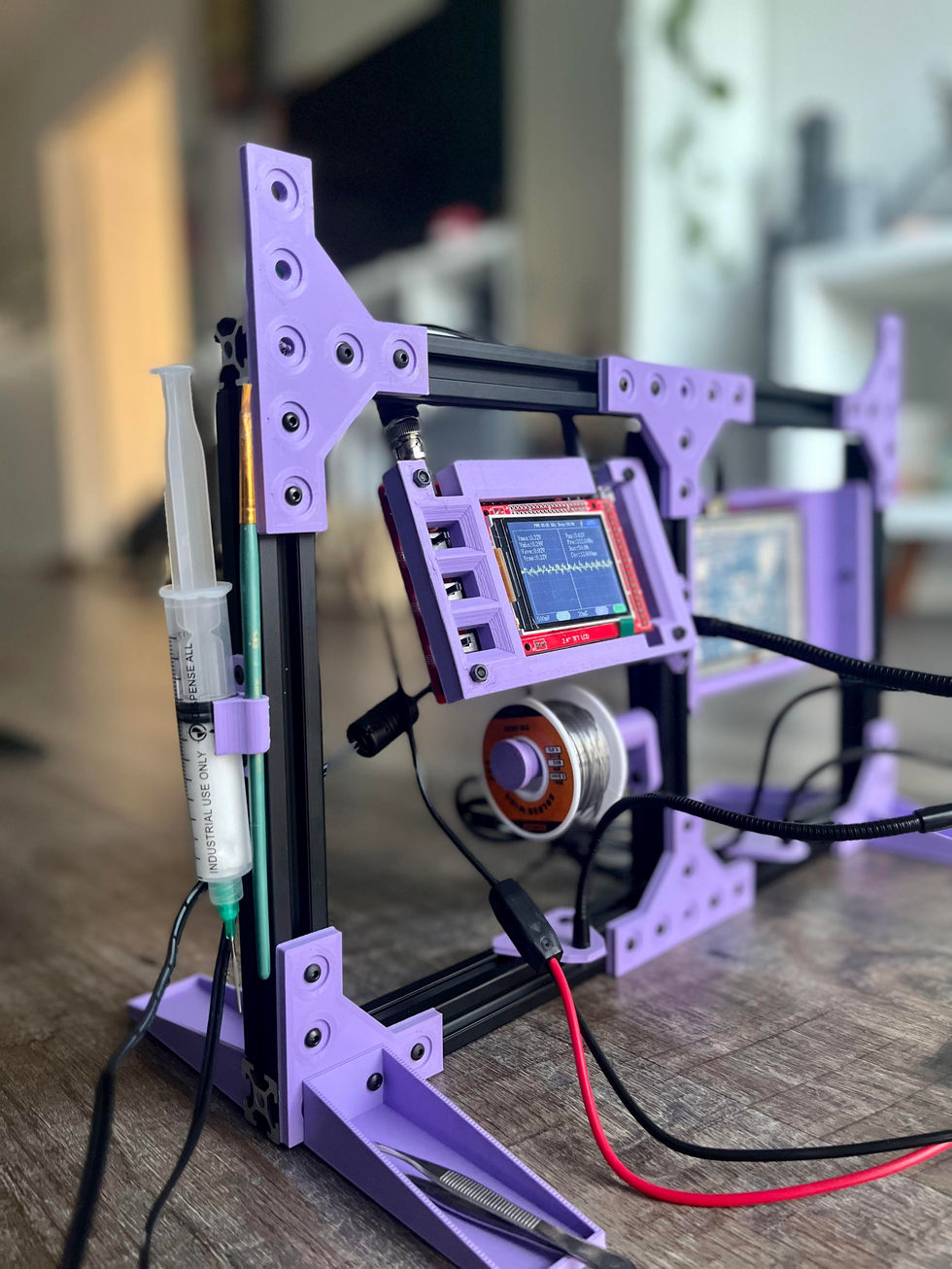

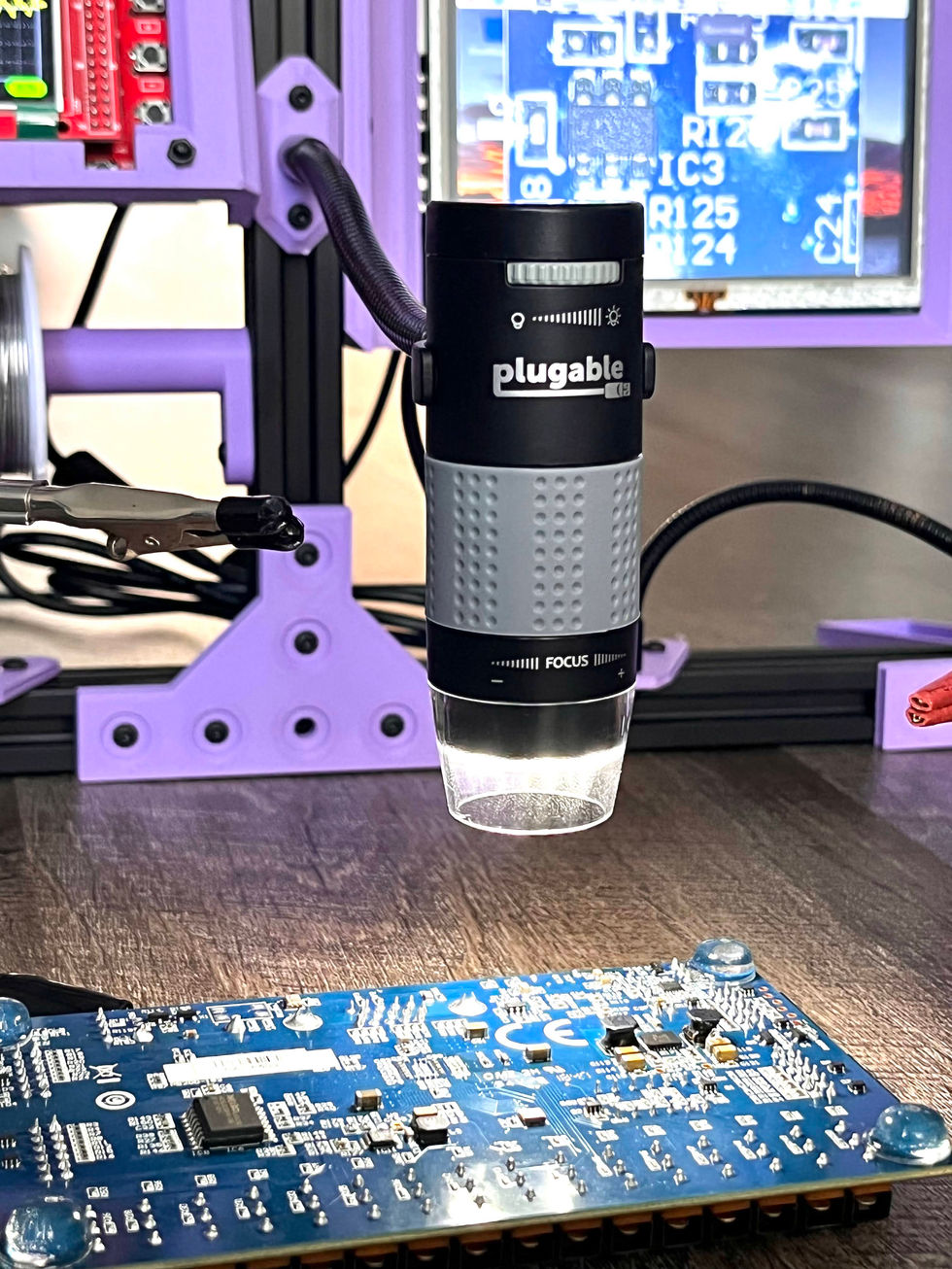

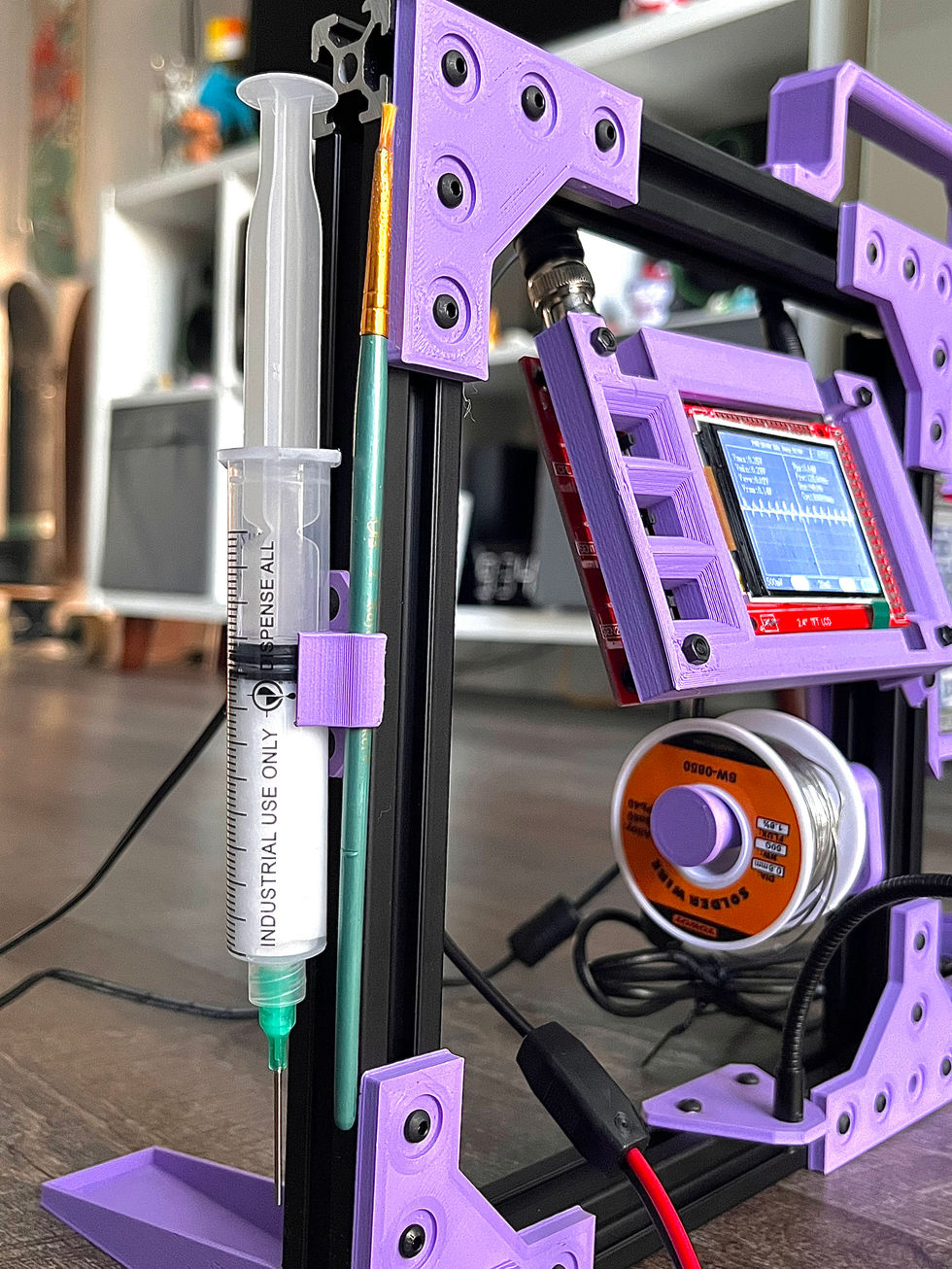

The construction is made from 25x25 aluminum extrusions, joined by 3D printed brackets. The station includes a USB microscope connected to a raspberry Pi with an external screen. On the right hand side there is a compact oscilloscope mounted for quick signal debugging and analysis. Lastly, I added flux and solder holders as well alligator clips for holding components in place.
