300Mhz Yagi-Uda Antenna
Project type
RF
Date
Jan 2023
Location
San Diego
Proposal: Synthesized and tuned a 300MHz Yagi-Uda antenna for improved transmitter signal strength.
Results:

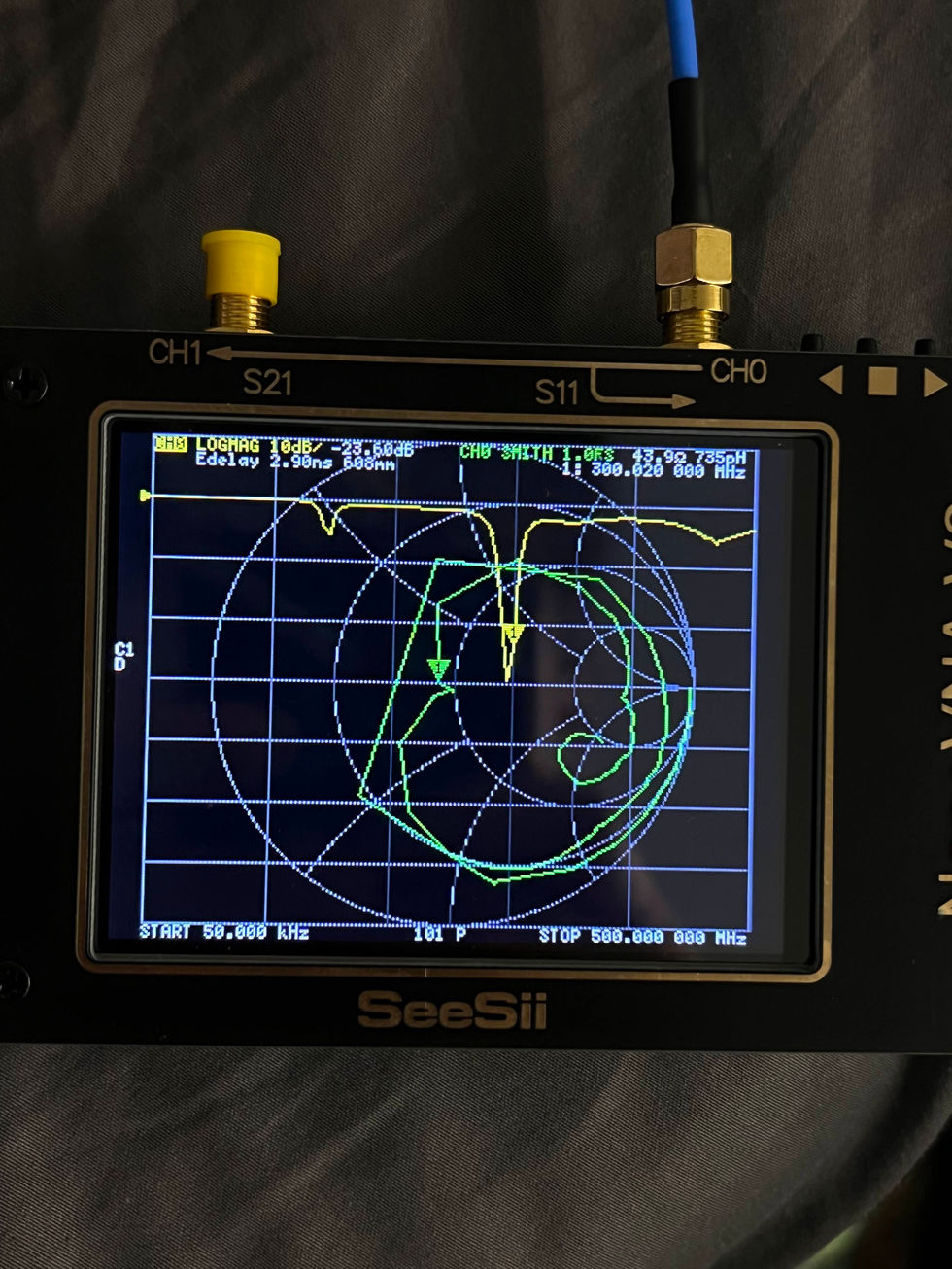

• Antenna achieved an S11 of -17dB of return loss @300MHz with a theoretical gain of 11.1dBi
• After tuning, Antenna achieved an S11 of -17dB of return loss @300MHz
• Transmitter range increased by 10m supporting the antenna’s effective increase in signal gain and directivity.
